Muaj Xov Tooj Nrog Zaub Screen JR105-FK
Cov Xov Tooj Muaj Cov Khoom Muag JR105-FK muaj tag nrho nyob rau hauv ib qho kev tiv thaiv corrosion cam khwb cia txhuas weatherproof cov ntaub ntawv muab kev tiv thaiv tag nrho tiv thaiv plua plav thiab noo noo ingress, ua rau cov khoom lag luam txhim khu kev qha nrog MTBF ntev.
Hauj lwm lawm

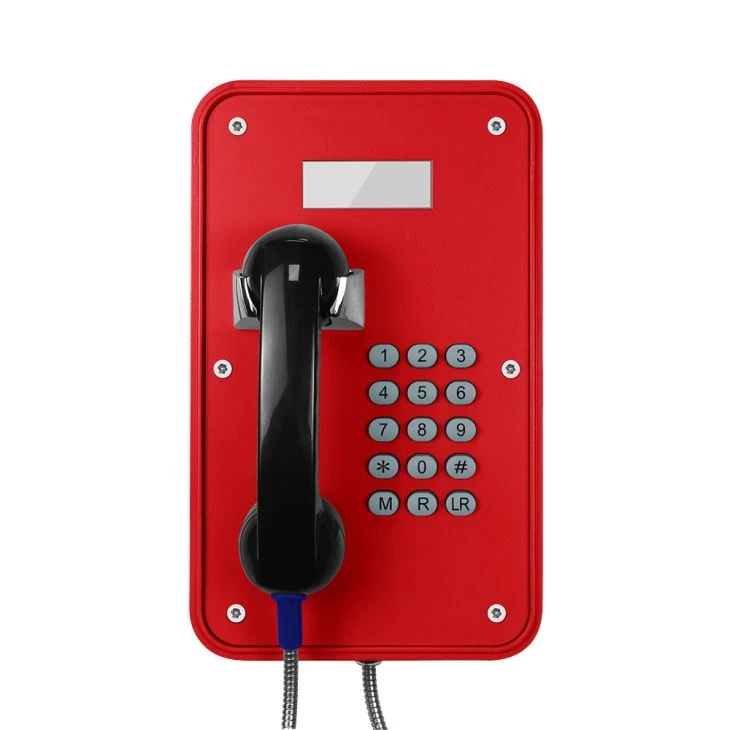

Tus Qauv Zauv: JR105-FK
Cov Xov Tooj Muaj Cov Khoom Muag JR105-FK muaj tag nrho nyob rau hauv ib qho kev tiv thaiv corrosion cam khwb cia txhuas weatherproof cov ntaub ntawv muab kev tiv thaiv tag nrho tiv thaiv plua plav thiab noo noo ingress, ua rau cov khoom lag luam txhim khu kev qha nrog MTBF ntev.
Cov khoom siv tshwj xeeb uas muaj zog yog tsim los ntawm cov khoom siv molded Bulk Molding Compound thiab tsim tshwj xeeb los tiv thaiv kev siv nyuaj hauv txhua qhov chaw, armored qaum los muab kev tiv thaiv ntxiv rau kev ua phem lossis kev siv hnyav.
APPLICATIONS of Industrial Phone with Display Screens
Qhov no weatherproof Industrial Xov tooj nrog cov ntxaij vab tshaus yog nrov heev rau Tunnels, Mining, Marine, Underground, Metro chaw nres tsheb, Railway platform, txoj kev loj, tsev so, chaw nres tsheb ntau, steel nroj tsuag, tshuaj nroj tsuag, fais fab nroj tsuag thiab lwm yam hnyav luag hauj lwm muaj daim ntawv thov, thiab lwm yam.
MAIN FEATURE ntawm Industrial Xov tooj nrog cov ntxaij vab tshaus
- Standard Analog, SIP/ VoIP, los yog GSM/3G xov tooj
- Aluminium weatherproof lub cev
- Nrog LCD zaub
- Vandal resistant handset thiab armored cord
- Kev tiv thaiv huab cua rau IP67
- Tag nrho cov keypad nrog lub cim xeeb, 0-9 nyees khawm tuaj yeem raug programmed li khawm ceev.
"LR" khawm rau tus lej kawg rov qab
"R" rau flash nco
"M" rau muting
- Phab ntsa mounting, Yooj yim rau installation
- Inductive coupler haum raws li tus qauv rau qhov tsis hnov lus
- Xov tooj kab powered (Analogue)
- Sab nraud fais fab mov lossis PoE (SIP-VoIP)
- RJ45 chaw nres nkoj rau SIP xov tooj
- CE, FCC, RoHS, ISO9001 ua raws
TECHNICAL SPECIFICATIONS of Industrial Phone with Display Screens
Casing Material:Tuag cam khwb cia aluminium, epoxy hmoov coated.
Xim:Daj, Xiav, Liab, Txiv kab ntxwv, lwm yam xim rau kev txiav txim tshwj xeeb
Khoom siv tes ua:Cycoloy nrog stainless hlau kauv qaum
Keypad:Roj hmab Keypad
Kub
Kev khiav hauj lwm: -40℃rau +70 degree
Khaws cia: -45℃rau +80 degree
Huab cua Resistance:IP66-IP67
Ringing Tone:Shrill warble tone 80 dBA @ 1 meter raug
Hook switch:Electronic / magnetic tsis pom qhov txav txav
M.T.B.F.: Muab xam kom muaj MTBF ntau tshaj 60,000 teev siv
Qhov hnyav:Txog li 5 kg nyob ntawm kev xaiv
Chav tsev loj:204 * 334 * 143 hli
VERSION SPECIFICATIONS of Industrial Phone with Display Screens
Fais fab mov | Los ntawm analogue xov tooj network |
Cov khoom siv hluav taws xob | 24 VDC rau 65 VDC |
Cov khoom siv tam sim no | 20 mA DC rau 100 mA DC |
Ringer Volume | - 80dB(A) ntawm qhov deb ntawm 1 m |
Txoj kev hu xov tooj | DTMF hom raws li ITU-T pom zoo Q.23. |
Fais fab mov | PoE los yog 12V DC |
Kev siv fais fab | -Idle: 1.5W |
SIP Protocol | SIP 2.0 (RFC3261) |
Txhawb Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
Hom kev sib txuas lus | Full duplex |
Ringer ntim | - 90~95dB(A) ntawm qhov deb ntawm 1 m |
Fais fab mov | 12V DC lub zog | |
Kev siv fais fab | -Idle: 0.3W | |
Hom kev sib txuas lus | Full duplex | |
Ringer ntim | 90 ~ 95dB (A) ntawm qhov deb ntawm 1 m | |
Txoj Kev Pabcuam | Cov chaw taws teeb tswj los ntawm SMS | |
Ntau zaus | Ib tug version: - Dual -Band WCDMA/HSDPA 850/1900MHz E version: - Dual{1}Band UMTS/HSDPA 900/2100MHz J version: - Dual-Band UMTS/HSDPA 850(800)/2100MHz | |
Hom kev tiv thaiv | IP66 raws li EN60529 |
Ua haujlwm kub | -40℃rau +70 degree |
Cia kub | -45℃rau +80 degree |
Peb Kev Pabcuam
1. ODM & OEM cov khoom lossis kev daws teeb meem
2. Cov qauv txiav txim tau txais tos zoo heev.
3. Peb yuav teb koj cov lus nug hauv 12 teev
4. Hloov kho cov txheej txheem tsim khoom thiab qhia cov ntaub ntawv ntim khoom
5. Tom qab xa cov khoom, peb yuav taug qab cov khoom rau koj ib zaug ob hnub, kom txog rau thaum koj tau txais cov khoom. Thaum koj tau txais cov khoom, yog tias muaj lus nug ntxiv, txais tos hu rau peb thiab peb yuav daws cov teeb meem rau koj raws sijhawm.
PACKAGE ntawm Industrial Xov tooj nrog cov ntxaij vab tshaus
Chav tsev loj: 334 * 204 * 143 (mm)
Thawv loj: 200 * 300 * 440 (mm)
Cov khoom ntim: pearl paj rwb, thawv
Qhov hnyav tag nrho: 6 KG
Net nyhav: 5 KG

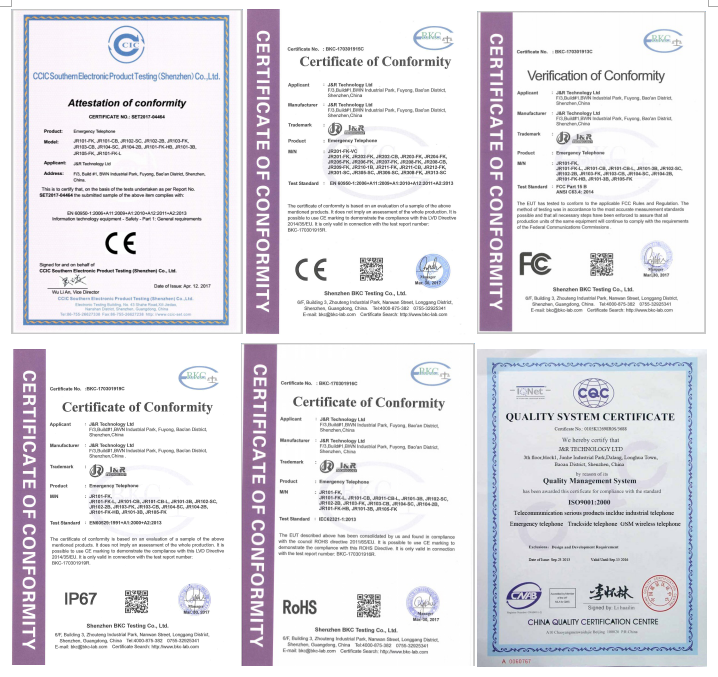

CERTIFICATIONS
Cim npe nrov: Cov Xov Tooj Muaj Xov Tooj Nrog Cov Duab Cov Xov Tooj Muaj Xov Tooj Nrog Cov Ntawv Tso Tawm JR105-FK, Tuam Tshoj, tuam ntxhab, lwm tus muag khoom, Hoobkas, tuam txhab, hom, yuav, zoo tshaj plaws, zoo, khoom
