ATEX Thiab IECEx Zone 1 & 2, Kov-Tone Explosion Proof Xov tooj
Xim: daj los yog Customized
Khoom siv: GRP
Daim ntawv pov thawj: ATEX IECEx EAC INMETRO
Loj: 302 * 240 * 129 (mm)
Installation: Phab ntsa mounting / Desk mounting
Ingress tiv thaiv ntsuas: IP66
Warranty: 2 Xyoos
Function: SOS
Feature: Explosion -proof & Weatherproof Xov tooj
Hauj lwm lawm
ProKab lus piav qhia
ATEX thiab IECEx Zone 1 & 2, Kov-Tone Explosion Proof Xov tooj
JREX106-SIP yog tsim los muab kev sib txuas lus nyab xeeb, txhim khu kev qha hauv thaj chaw muaj kev phom sij.
Cov xov tooj tau tsim los rau kev ua haujlwm hauv lubpetrochemical kev lag luam, feem ntau yog siv rau hauv kev tsim khoom, kev thauj mus los, thiab kev ua kom zoo ntawm cov roj, cov pa roj, cov thee, thiab lwm yam.
Lub vaj tsev yog tsim los ntawm kev cuam tshuam thiab poob siab- tiv taus GRP thiab tseem tiv taus cov kua qaub, alkalis, thiab roj nplua nyeem.
| Casing Khoom | High Impact iav fiber ntau-polyester |
| Xim | daj, lwm yam xim rau kev txiav txim tshwj xeeb |
| Khoom siv tes | High Impact Thermoset Resin Compound |
| Keypad | 20-thooj stainless hlau keypad |
| Kub | Kev khiav hauj lwm: -45℃rau +70 degree Khaws cia: -45℃rau +75 degree |
| Huab cua Resistance | IP66 |
| Ringing Tone | Shrill warble tone 95 dBA ntawm 1 meter raug |
| Kev tawg Kev tiv thaiv | II 2G Ex e ib [ib] mb IIC T4 Gb II 2D Ex ib [ib] tb IIIC T135℃Db -40℃Tsawg dua lossis sib npaug Ta Tsawg dua lossis sib npaug rau +60℃/+40 degree Zone 1, 2, 22 |
| txheeb ze humidity | Txog li 95% (tsis yog-condensing) |
| M.T.B.F. | Muab xam kom muaj MTBF ntau tshaj 50,000 teev siv |
| Hook Hloov Lub Neej | >1 000 000 Kev ua haujlwm |
ATEX thiab IECEx Zone 1 & 2, Kov-Tone Explosion Proof Xov tooj
| Analogue Version | |
| Fais fab mov | Kab powered ie kos los ntawm kab xov tooj. Nws tsis tas yuav muaj lwm yam khoom siv AC. |
| Cov khoom siv hluav taws xob | 24 VDC rau 66 VDC |
| Cov khoom siv tam sim no | 20 mA DC rau 100 mA DC |
| Ringer Volume | Max. approx.90dB(A) hauv 1 m nrug |
| xob laim / Transients | Kev tiv thaiv rau ITU-T k .21 txhim kho qib |
| SIP Version | |
| Fais fab mov | Fais fab dhau Ethernet raws li IEEE 802.3af hla cov khoom siv hluav taws xob lossis cov khoom siv sab nraud, 12V DC |
| Kev siv hluav taws xob (PoE) | 2.5 W |
| SIP Protocol | SIP(RFC 3261 Ua raws) |
| Txhawb Codec | G.711 A/U, G.722 8000/16000, G.723, G.729 |
| Hom kev sib txuas lus | Full duplex |
| Ringer Volume | 95dB (A) hauv 1m nrug |
| Ambient tej yam kev mob | |
| Hom kev tiv thaiv | IP66 raws li EN60529 |
| Ua haujlwm kub | -40˚ rau +70˚C (-22˚Frau +140˚F) |
| Cia Kub | -45℃rau +70℃(-22℃F txog 158℃F) |
| Qhia qhov kub thiab txias | -10℃/ +55 degree |
ATEX thiab IECEx Zone 1 & 2, Kov-Tone Explosion Proof Xov tooj
★ Suab nrov- tshem tawm lub microphone
★ Sib nqus reed nuv hloov los txo cov khoom raug hnav
★ Hnov-Aid Compatible (HAC) receiver
★ High- cuam tshuam cov thermoset resin muaj vaj tse thiab ergonomic hnyav-lub luag haujlwm
★ Corrosion-cov khoom siv tiv taus
★ Loj urethane-coated watertight hlau keypad
ATEX thiab IECEx Zone 1 & 2, Kov-Tone Explosion Proof Xov tooj
| Qhov Loj | 302 * 240 * 129 hli (L * W * D) |
| Carton Loj | 408 * 280 * 170 hli (L * W * D) |

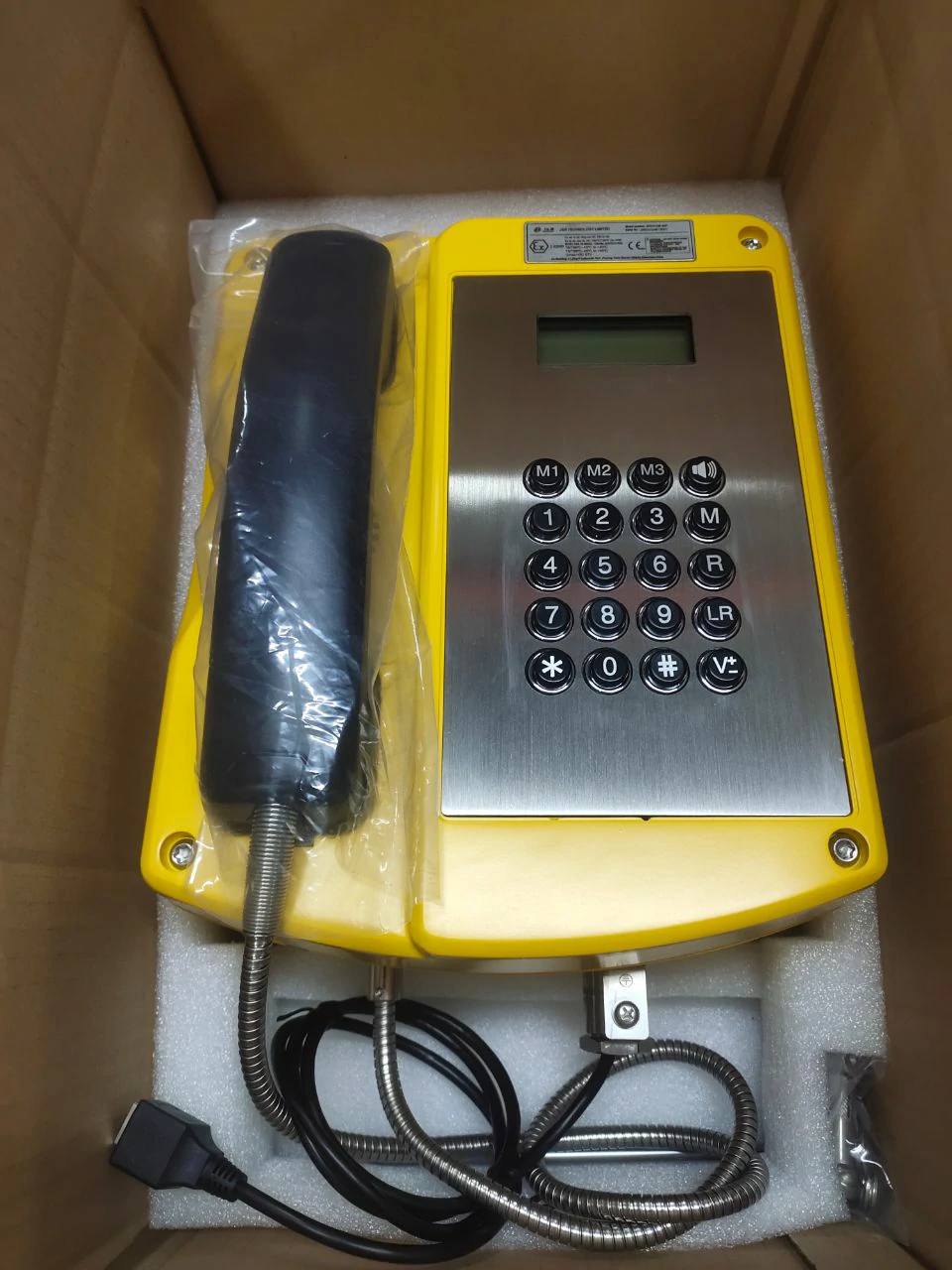

| Cov khoom ntim | Pearl paj rwb, thawv |
| Net nyhav | 6,5 KG |
| Qhov hnyav tag nrho | 7,5 KG |
| Chaw nres nkoj | Shenzhen, Guangdong | |||
| Lub Sijhawm Lead (Yog tias koj ua tiav qhov kev them nyiaj hnub no, koj daim ntawv xaj yuav xa tawm hauv hnub xa khoom.) | Quantity (Tshooj) | 1 | 2-500 | >500 |
| Est. Sijhawm (hnub) | 2 | 25 | Yuav tsum sib tham | |
ATEX thiab IECEx Zone 1 & 2, Kov-Tone Explosion- Pov Thawj Xov Tooj
Raws li ib tus neeg muab kev ntseeg siab ntawm ntau hom kev lag luam xov tooj, peb tau sib koom cov khoom siv thiab cov tshuab nrog cov neeg siv khoom sib txawv thiab cov neeg siv thoob plaws ntiaj teb.
Cov kev pabcuam tshaj lij thiab zoo heev ua rau pebtxaus siab rau lub koob npe nrov hauv ntau dua 80 lub teb chaws, suav nrog Asmeskas, Tuam Tshoj, Thaib, Malaysia, Qaib ntxhw, Israel, Greece, Spain, Fabkis, UK, Denmark, South Africa, Australia, Mexico, Colombia, Chile thiab lwm yam.
ATEX thiab IECEx Zone 1 & 2, Kov-Tone Explosion- Pov Thawj Xov Tooj
J&R yog ib lub tuam txhab tshaj lij tshaj plaws ntawm xov tooj thaum muaj xwm ceev, xov tooj muaj xov tooj, Xov tooj tawg - pov thawj, thiab xov tooj pej xeem hauv Asia.
Kev koom tes zoo nrog ntau txhiab tus neeg siv khoom thoob plaws ntiaj teb thiab kev txhawb nqa rau ntau pua txoj haujlwm tau ua rau peb muaj kev ntseeg siab thiab nrov ntawm cov xov tooj thiab cov khoom siv hauv xov tooj.
Peb cov khoom tseem ceeb suav nrog cov xov tooj tsis muaj huab cua, tawg- xov tooj pov thawj, xov tooj hauv tsev loj cuj, xov tooj xwm ceev, xov tooj of elevator, lub rooj muag xov tooj acoustic, thiab cov khoom siv xov tooj thiab.
ATEX thiab IECExZone 1 & 2, Kov-Tone Explosion Proof Xov tooj
Q: Koj puas muaj MOQ txwv?
A: Tsawg MOQ, 1pc muaj
Q: Kuv puas tuaj yeem muaj tus qauv txiav txim?
A: Yog lawm, peb txais tos cov qauv txiav txim los kuaj thiab xyuas qhov zoo. Cov qauv sib xyaw ua ke tau txais.
Q: IP Ratings txhais li cas?
A: IP Ratings siv rau cov ntaub ntawv xws li peb lub xov tooj. Lawv qhia tias yuav ua li cas cov ntaub thaiv npog tiv thaiv dej thiab plua plav nkag, qhov siab dua qhov zoo dua.
Q: Yuav ua li cas txuas ntxiv nrog kev txiav txim?
A: Ua ntej qhia rau peb paub koj cov cai lossis daim ntawv thov. Secondly, Peb hais raws li koj xav tau los yog peb cov lus qhia. Thib peb cov neeg siv khoom lees paub cov qauv thiab tso nyiaj rau kev txiav txim raug cai. Plaub Peb npaj cov khoom tsim.
Q: Thaum twg kuv tuaj yeem tau txais koj cov lus hais?
A: Hauv 12 teev
Q: Kuv tuaj yeem them koj li cas?
A: Ntau txoj hauv kev yooj yim rau kev xaiv: Paypal, T / T, L / C.
Q: Yuav ua li cas txog lub sijhawm khoom xa tuaj?
A: Feem ntau hauv 2-5 hnub ua haujlwm. Peb muaj cov khoom hauv Tshuag rau feem ntau ntawm cov khoom kub muag. Lub sijhawm ntau lawm xav tau 2-4 lub lis piam rau kev txiav txim kom muaj nuj nqis ntau dua 100 units.
Q: Koj puas muab kev lees paub rau cov khoom?
A: Yog, peb muab 2 xyoo lav rau peb cov khoom tiv thaiv kev xa khoom.
Q: Tus qauv zoo ntawm koj cov khoom yog dab tsi?
A: CE, FCC, RoHS, ISO9001: 2015 ntawv pov thawj pom zoo. Tag nrho cov ntaub ntawv yog qib siab - qib thiab tshiab. Nrog nruj zoo, txhua lub xov tooj yuav tsum tau kuaj kom huv si ua ntej tawm hauv lub hoobkas.
Q: Puas yog nws luam kuv lub logo rau ntawm cov khoom?
A: Yog. Thov qhia rau peb paub ua ntej peb cov khoom thiab paub meej tias tus qauv tsim ua ntej raws li peb cov qauv.
Q: Koj puas muab kev pab cuam installation?
A: Tsis yog, peb tsis nruab cov khoom, tab sis lawv ncaj nraim rau nruab, thov hu rau peb yog tias tsis paub meej.
Q: Yuav ua li cas txog shipping?
A: 1. Xa los ntawm DHL / TNT / UPS / FEDEX / EMS, 3-5 hnub
2. Xa los ntawm Huab Cua: Tuaj txog ntawm qhov chaw tshav dav hlau ceev ceev ces tuaj tos koj tus kheej
3. Nkoj los ntawm Hiav Txwv: Tsawg tus nqi thauj khoom thiab xa khoom qeeb (15 - 30 hnub)
Q: Yuav ua li cas nrog cov faulty?
A: Ua ntej, Peb cov khoom tau tsim nyob rau hauv kev tswj hwm nruj thiab tus nqi tsis zoo yuav tsawg dua 0.2%. Thib ob, thaum lub sijhawm lav, peb yuav xa ib qho tshiab nrog kev txiav txim tshiab rau ib qho me me. Rau cov khoom lag luam tsis raug, peb yuav kho lawv thiab xa rov qab rau koj lossis peb tuaj yeem sib tham txog kev daws teeb meem suav nrog rov- hu rau raws li qhov xwm txheej tiag tiag.
