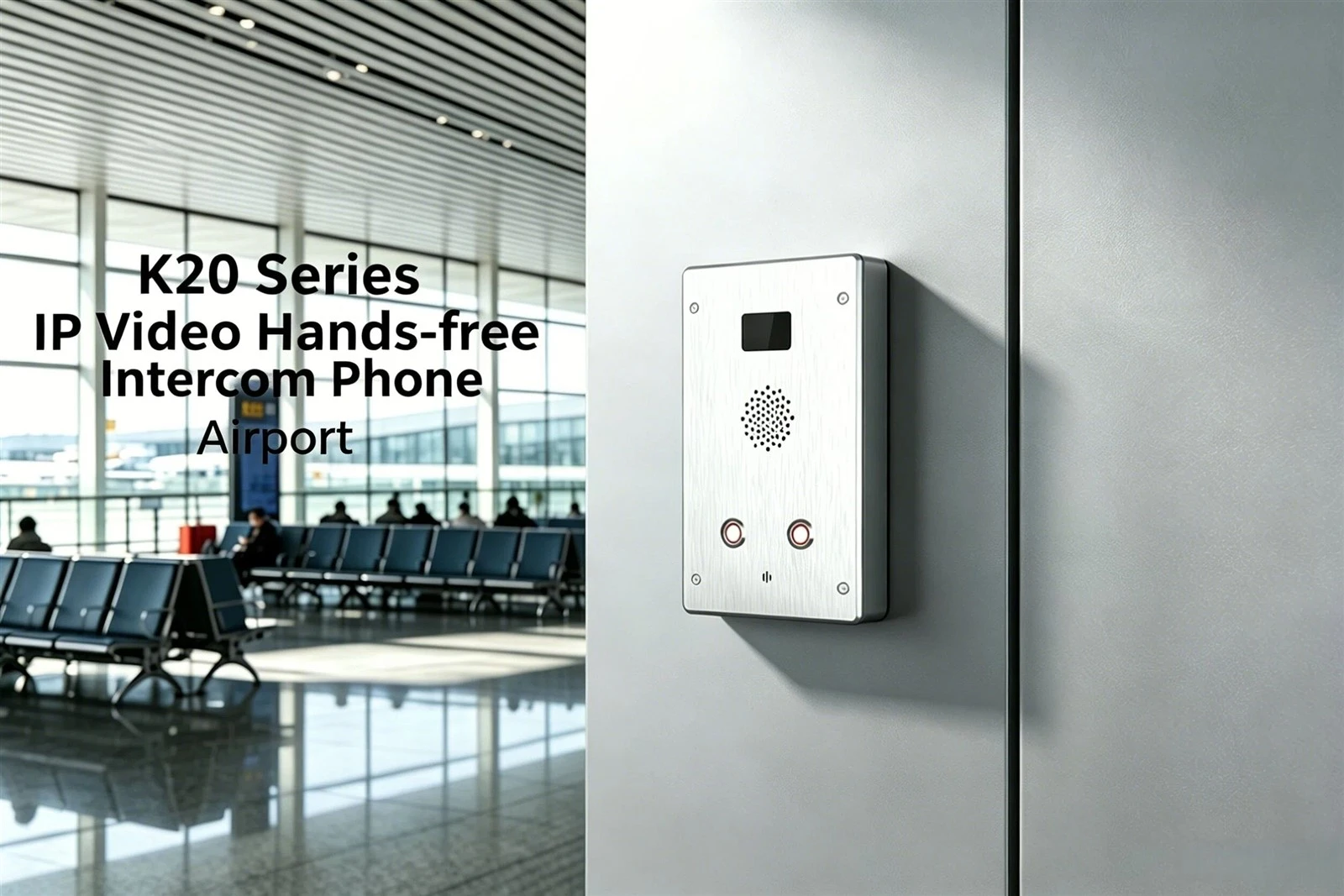

Hu Xov Tooj Kub Ceev IP Video Intercom Terminals K20 Series
Raws li qhov kev thov rau kev ruaj ntseg ntse thiab kev sib txuas lus ntse txuas ntxiv mus, video intercom thev naus laus zis tau hloov zuj zus mus rau siab dua - video txhais lus, kev ua haujlwm ntse dua, thiab kev ntseeg siab dua. Cov neeg siv niaj hnub no tsis tsuas yog xav kom muaj kev sib txuas lus zoo xwb tab sis kuj xav tau kev ua tau zoo thiab kev sib koom ua ke nyob rau hauv qhov chaw ua haujlwm nyuaj.Cov K20 series yog tsim los xa cov kev sib txuas lus meej dua, txhim khu kev ntseeg siab, thiab hloov tau yooj yim, cov khoom tshiab no ua tau raws li kev sib txuas lus xav tau ntawm kev lag luam, kev lag luam, thiab kev nyab xeeb rau pej xeem.
Hauj lwm lawm
J&R Technology yog ib qho ntawm Tuam Tshoj thaum muaj xwm ceev hu ip video intercom terminals k20 series tuam ntxhab thiab cov muag khoom nrog ib lub npe nrov, peb kuj muaj peb lub Hoobkas, peb yog ib lub tuam txhab kev tshaj lij thiab tuaj yeem muab koj zoo tshaj plaws hu xov tooj thaum muaj xwm ceev ip video intercom terminals k20 series khoom. Zoo siab txais tos mus yuav cov khoom zoo - zoo los ntawm peb.
Functional Description
K20C video intercom nta cov vaj tse aluminium alloy, muab qhov tshwj xeeb ruaj khov, tiv thaiv corrosion, vandal{1}} pov thawj tiv thaiv, thiab kev ntseeg siab. Tag nrho cov khoom siv hluav taws xob yog kev lag luam -qib, ua kom muaj kev ruaj khov nyob rau hauv huab cua kub xws li -40℃txog 65℃. Tsis tas li ntawd, cov koob no tau dhau los kuaj tshuaj ntsev, ua rau nws tiv taus cov av noo thiab corrosive ib puag ncig. Tsim kom yooj yim installation, lub cable nkag yog nyob rau tom qab ntawm lub cuab yeej los tiv thaiv tampering.
Zoo tagnrho rau chaw nres tsheb, tsev so, nkag, tshav dav hlau, railway / subway platforms, tsev kho mob, chav huv si, tub ceev xwm chaw nres tsheb, ATMs, chaw ntau pob, thiab cov tsev sab nraum zoov.
Standard SIP-raws li intercom
HD koob yees duab nrog H.264 encoding
Suab nrov- tshem tawm lub microphone
Ua-hauv 2W hais lus
Protection level IP55-IP65
(K20-C) Ib lub khawm ceev-dial backlit (illuminated thaum hu)
(K20-2C) Ob lub khawm ceev-dial backlit (illuminated thaum hu)
Aluminium alloy vaj tsev nrog txheej txheem kos duab
Full -ob txhais tes- kev sib txuas lus pub dawb nrog HD suab nrov txo tshuab
Ntawv pov thawj: CE, FCC, RoHS, IK10, IP65, ISO9001
Phab ntsa-mount tsim nrog tiv thaiv-tamper screws
|
Ntim Specifications |
|
|
Cov khoom loj |
195 × 120 × 40 hli (L × W × H) |
|
Cov khoom ntim |
EPE ua npuas ncauj hauv ob sab phlu + thawv thawv |
Technical Specifications
|
SIP Specifications |
|
|
Fais fab mov |
PoE muaj zog |
|
Kev siv fais fab |
Idle 1W / Ua haujlwm 2.4W |
|
SIP raws tu qauv |
SIP 2.0 (RFC3261) |
|
Network port parameters |
WAN Chaw nres nkoj: 10/100Base- T RJ-45 rau LAN, Auto MDIX |
|
Lub suab codecs |
G.711 a / u,G.722 8000/16000,G.723,G.729,G.726 |
|
Kev sib txuas lus hom |
Full duplex |
|
Ringing ntim |
90 dB (A) @ 1 meter |
|
Technical Specifications |
|
|
Tau tshaj SIP -raws IP-PBX servers uas ua raws li SIP RFC 3261 |
|
|
PoE 802.3af enabled (Power-over-Ethernet) los yog lwm lub hwj chim |
|
|
Txhawb kev hloov pauv tsis siv neeg ntawm cov thawj thiab thaub qab servers |
|
|
Txhawb tej thaj chaw deb Telnet debugging |
|
|
Txhawb ob relays rau remotely tswj cov khoom siv sab nraud |
|
|
Ua haujlwm kub -40˚C txog 65˚C |
|
|
Cia kub -40℃rau 75 degree |
|
|
MTBF tshaj 50,000 teev nyob rau hauv ib txwm ua haujlwm
|
|
|
Network Web Kev tswj hwm |
|
|
Tag nrho configurable los ntawm txhua qhov internet browser |
|
|
Kev muab IP chaw nyob zoo lossis DHCP kev txhawb nqa |
|
|
Cov khoom siv tus kheej- kev kuaj mob muaj nyob hauv lub vev xaib interface |
|
|
Network-kho tau pob ntseg ntim thiab microphone rhiab heev |
|
|
Firmware upload ntawm lub web interface |
|
|
Echo tshem tawm: Txhawb G.168, thiab tes- pub dawb tuaj yeem txhawb 96ms |
|
|
Txhawb SIP sau, SIP authentication (tsis muaj, yooj yim, MD5), thiab DNS npe ntawm server |
|
|
DTMF: SIPINFO, INBAND, RFC2833 |
|
|
Network Nta |
|
|
Tau tshaj tawm IP chaw nyob tom qab kev sib txuas network ua tiav |
|
|
Txhawb web interface backend, lub intercom tuaj yeem teeb tsa los ntawm nplooj ntawv web |
|
|
Cov ntaub ntawv raws tu qauv: IPv4, TCP, UDP, ICMP, ARP, RTP, SRTP, ONVIF, SNMPv1, RTCP-}XR, 802.1x, Static IP/DHCP IP Assignment, IEEE 802.1p/Q, QoS/ToS, HTTP/HTTPS/DHCP, NTP, FTP/TFTP, CDP/LLDP VLAN Configuration, LDAP |
|
|
Lub koob yees duab Specifications |
|
|
Qhov zoo tshaj plaws pixel |
1920 (H) *1080 (V) |
|
Lens specifications loj |
1/4, aperture: F2.5, Ua kom pom tseeb: 2.5mm, FOV: 80 degrees |
|
Fais fab mov thiab interface |
USB BUS powered |
Muaj-Qib Kev Tiv Thaiv rau Ib puag ncig hnyav
Lub K20 IP Video Intercom nta lub tsev muaj zog aluminium alloy vaj tsev uas muab kev tiv thaiv zoo heev thiab kev tiv thaiv corrosion. Nrog kev tiv thaiv kev ntsuas txog IP65, K20 tau tsim kho kom muaj kev ntseeg siab nyob rau sab nraum zoov, ntub dej, plua plav, thiab lwm qhov chaw xav tau.
Ntsiab nta
■ HD Video Kev Sib Txuas Lus
Txhawb H.264 video encoding kom meej, tiag - video kis tau tus mob.
■ Full -Duplex HD Audio
Nruab nrog lub suab nrov -tso tseg lub microphone thiab 2W tus neeg hais lus, ua kom muaj kev sib txuas lus meej txawm tias nyob hauv ib puag ncig nrov.
■ Kev lag luam -Grade Reliability
Ua haujlwm nyob rau hauv qhov dav ntawm qhov kub ntawm -40℃rau +65 degree, haum rau hnyav kev lag luam.
■ Standard SIP raws tu qauv
Tau tshaj nrog mainstream IP kev sib txuas lus platforms kom yooj yim kev koom ua ke thiab centralized tswj.
■ High -Kev Tiv Thaiv Qib
Nta IP65 tiv thaiv huab cua tsis zoo thiab IK10 vandal tsis kam rau kev txhim kho durability thiab kev pab lub neej ntev.
Tej kev siv
Chaw nres tsheb, tsheb ciav hlau thauj mus los, tshav dav hlau, tsev kho mob, tsev so, elevator, chaw ua haujlwm, thiab ntau yam kev sib txuas lus rau pej xeem.
